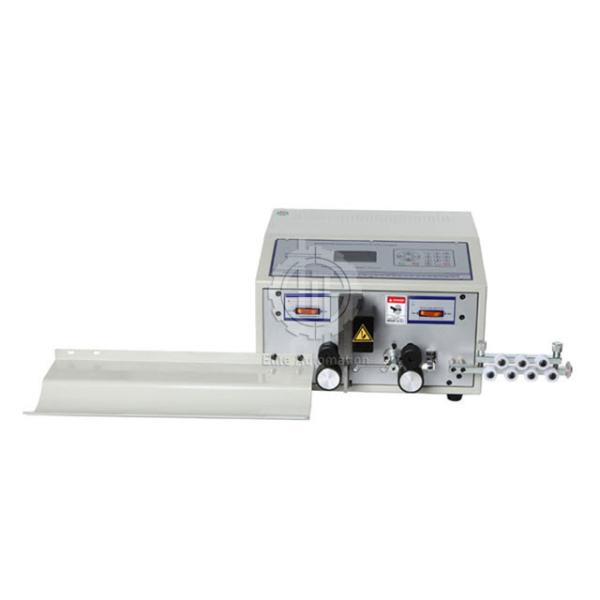

    AC175V - 260V Multifunctional Wire Harness Cutting Machine

    Ask Lasest Price
    Model Number : EL-SGWCS
    Delivery Time : 2-3 weeks
    Payment Terms : T/T
    • Product Details
    • Company Profile

    AC175V - 260V Multifunctional Wire Harness Cutting Machine

    Automatic Computer Peeling And Cutting Machine Offline Machine Tangent Machine Multifunctional Wire Harness Cutting Machine

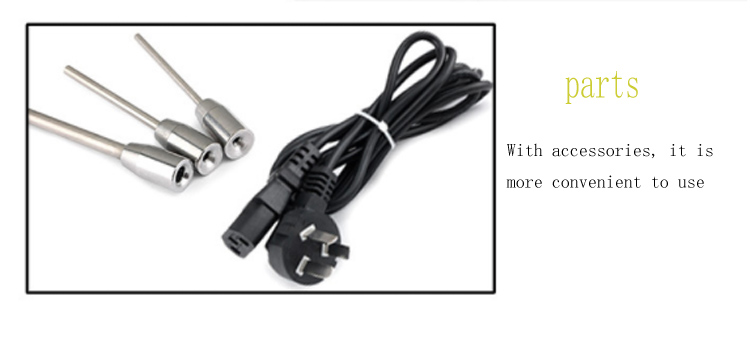

    The machine is suitable for a variety of wires, such as electronic wire, FEP wire, silica gel wire, glass fiber wire, coaxial line, isolation wire, sleeve, etc. Function: realize the full stripping, semi stripping and medium stripping of wire. The machine uses a fully automatic moving tool holder, four wheels are driven at the same time, the gear is cut off, the knife cut is neat, and the stripping quality is stable. Led dual language (Chinese / English) setting, simple operation, intelligent setting and flexible replacement. Seven straighteners are adopted to make the wire more straight and accurate, and improve the work quality and efficiency. Provide a variety of accessories for more convenient use


    Machine parameters


    Machine nameComputerized peeling and thread cutting machine (4 square meters)
    Conduit diameter1.5-6mm
    production efficiency3000-7000 PCS / h
    Cutting wire core0.1-4 square meters
    Weight26kg
    Memo functionIncoming, outgoing, automatic tool setting, timing start, output can be set, and tangent speed can be adjusted
    Cutting length1-99999.99mm
    Dimensions400*300*330mm
    Stripping LengthFirst stripping 10mm tail stripping 10mm
    Blade materialImported high-speed steel, tungsten steel
    Pulse equivalentNo error within 2m
    Middle strip15 segments
    Driving modeFour-wheel drive at the same time
    Accuracy of incoming and outgoing motorSilent mixing motor 0.01mm per step
    Power supplyAC175V-260V50/60HZ
    Cut-off toleranceWithin 0.002*L
    Power120W-220W
