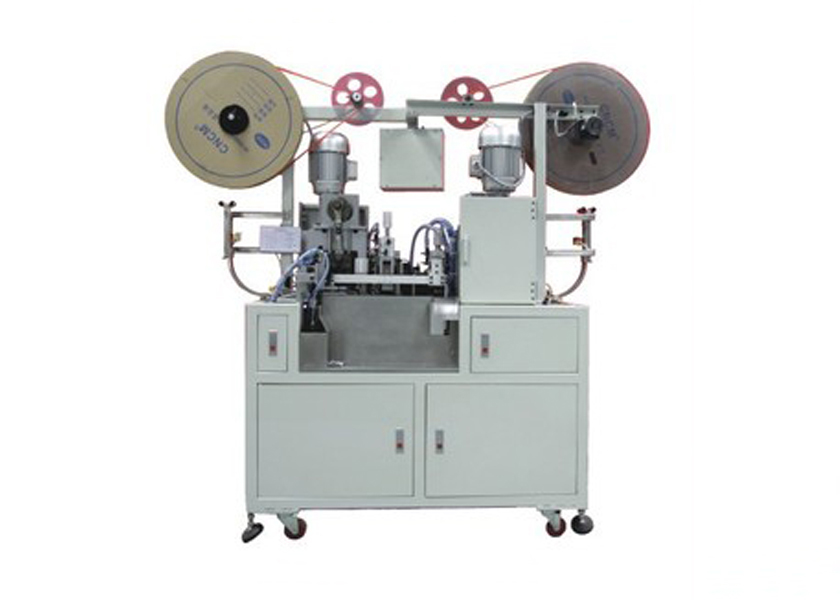

The manufacturer supplies automatic double head cable terminal
machine, strip terminal machine, mute terminal machine
Product description
1. the machine adopts the imported top-level configuration:
Mitsubishi PLC control, servo motor, human-computer interface, and
Japanese SMC pneumatic components
2. THK track, Japan Xinbao reducer, Omron and kehens sensors in
Japan
3. double head cutting line peeling single head with waterproof
bolt double end punching terminal, pulling sheath, peeling and
cutting material belt, easy to operate
4. detection device with abnormal peeling, pressure abnormal and
air pressure abnormality
5. realize real full automation. Up to 1700 PCS / h
technical parameter
Model: kar-228
Control mode: PLC control
Terminal mould: OTP card type general mold and other mold
Capacity: 1300pcs/ hour (machine speed is related to length, wire
material and terminal, and actual speed needs to test customer wire
rod)
Applicable wire: awg12 × 26 × 2 (modifiable)
Terminal range: all continuous terminals (disc terminals)
Cutting range: 40mm-9999mm (otherwise required to be improved)
Cutting accuracy: ± 0.1mm+ cut-off length less than 0.2%
Peeling range: 1-17mm on 0.1-10 mm on one side and 1-17mm on 2
sides (depending on the line of sight material)
Detection device: detect the low air pressure, peeling, pressure
terminal detection, feeding fault, eliminate all the bad shutdown
abnormalities, and will be displayed on the frequency screen
Power supply: 220V single phase
Air pressure: 0.4map-0.5map
Weight: 450kg
Dimension: 1300W × 800D × 1330h (mm)
Description of characteristics
The automatic line terminal pressing machine is a fully automatic
multifunctional machine which integrates feeding, cutting,
stripping and pressing end. Traditional line pressing terminal is
manual operation, not only low efficiency, but also unstable
product quality. Moreover, operators should continuously and highly
concentrate on eye power to repeat the same action, and the eyes
are easy to fatigue. The company has been operating in the online
material terminal industry for many years, and has accumulated rich
technology and experience. After more than 2 years, it has a wide
potential: mainly used for pressing: pH, XH, eh, Zh and other color
row communication harness terminals, Sn, SM, V DuPont and other
connector line terminals
Cost saving: front end delivery, back end finished products, all
processes are completed automatically, saving customers a lot of
production costs
Good stability: the eccentric shaft and cam structure are used for
end striking, and the terminal pressure force is balanced, so that
the wire harness terminals are pressed neatly, with good
consistency and very stable product quality. The machine is stable
in operation and high in finished product rate. High precision:
step motor is used to control cut-off, the stripping length of the
split line is 0.1mm.
