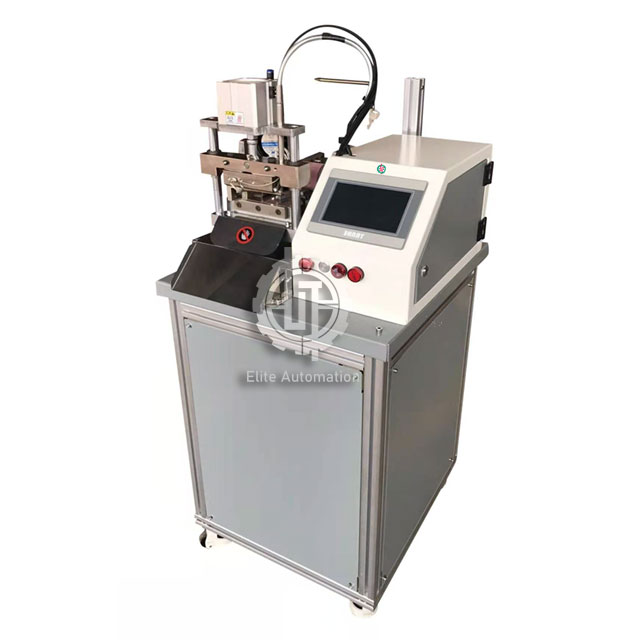

Multi-function Webbing Cutting Machine for Belts Tapes Velcro Hoses
and Cables etc
This machine will cut various widths of woven tapes, Velcro,
plastic hoses, plastic zippers, flat flexible cords, trademark
labels, and other strips to the length and quantity you specify.
Angle adjustment ranges from 45 to 135 degrees.
Rectangles, parallelograms, trapezoids, and other cutting shapes
It has a heating system that can heat seal different sizes of
materials, so the incision is not loose and the welding effect is
fine, and it has a compensation mechanism built according to the
elasticity of the material to be cut, which can add higher
precision to the product.
The cutter on a hot and cold cutting machine does not need to be
modified.
The color code sensor will position the infrared positioning system
to precisely cut trademarks and Velcro of different widths and
sizes.
Velcro and other strip materials may have rounded corners cut out
of them.
The computer automatically saves the current quantity, setting
length, rpm, and other data after it is turned off.
Fast feeding speed, high precision, low noise, light weight, and
portability are all advantages.
For more information, please contact our sales people. We will be
very happy to access your needs and give you back a best solution
for your case. Our company also be very good at doing modifications
for all of our machines to suit your particularly needs.
Make-to-Your-Need is one of our key services. You will find that we
are not only a machinery maker but also a total solution provider
to your practically cases. We are looking forward to have
investigation and discussion with you.
| Cutting length | 1-1,000,000 mm |
| Max.cutting width | Straight 100/Chamfer 50mm |
| Cutting speed | 100-120mm |
| Adjustable angle of blade | 45-135° |
| Voltage/frequency | 220V; 50/60Hz |
| Power | 0.6KW |
| Weight | 65KG |
| Size | 720*440*560mm |
