Energy Saving Double-side Heat Shrinkable Tube Heater
The intelligent temperature-adjustable double-sided heat-shrinkable
tube heating system is ideal for heating heat-shrinkable tube
shrinkage in wire harness manufacturing. It can change the
temperature to meet the needs of the manufacturing process, and it
has a fast contraction period. It has the ability to shrink to any
duration and operate nonstop for 24 hours. The heat shrinkable tube
is heated uniformly thanks to unidirectional reflective thermal
materials.
Conveying system + heating system + cooling system + control system
+ equipment bracket
The heating area's shell is made of double-layer heat insulation,
which separates the inside and outside temperatures, saving energy
and protecting the working atmosphere.
The heating box's heat-reflecting inner wall ensures that the
heating has a uniform heating effect.

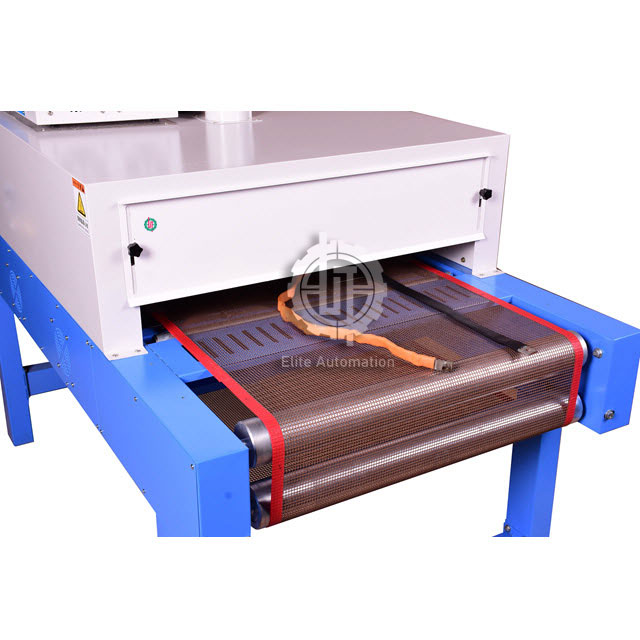

The conveyor belt heating box is fully closed, and the input and
output ends of the heating box have a sliding door that can rise
and fall to effectively avoid heat source leakage, protect the
working environment, save energy, and improve the machine's
capacity to perform several tasks with one machine.
The height of the infrared heating tube can be easily adjusted.
Ensure that the distance between the light source and the conveyor
belt is consistent.
The equipment's bracket can be disassembled at will, increasing the
equipment's adaptability and versatility.
A cooling fan is installed in the outlet to keep the heated shrink
tube cool.
For more information, please contact our sales people. We will be
very happy to access your needs and give you back a best solution
for your case. Our company also be very good at doing modifications
for all of our machines to suit your particularly needs.
Make-to-Your-Need is one of our key services. You will find that we
are not only a machinery maker but also a total solution provider
to your practically cases. We are looking forward to have
investigation and discussion with you.
| Belt width | 400mm |
| Maximum transmission width | 450mm |
| Maximum transmission height | 100mm (Adjustable) |
| Conveyor belt | Material quality FEP |
| Speed | 1~5m/min |
| Heating pipe | Infrared heating tube |
| Heating pipe power | 500W*16 |
| Power Supply | 380V |
| Power | 8400W |
| The power of motor | 90W (Stepless speed regulation) |
| Conveyor (L×W×H) | 1800×650×1150mm |
| Heating area (L×W) | 1000×650mm |
| Outer packing size | 1890×950×730 |
| Size | 1800×750×1280mm (Containing the air duct and motor) |
