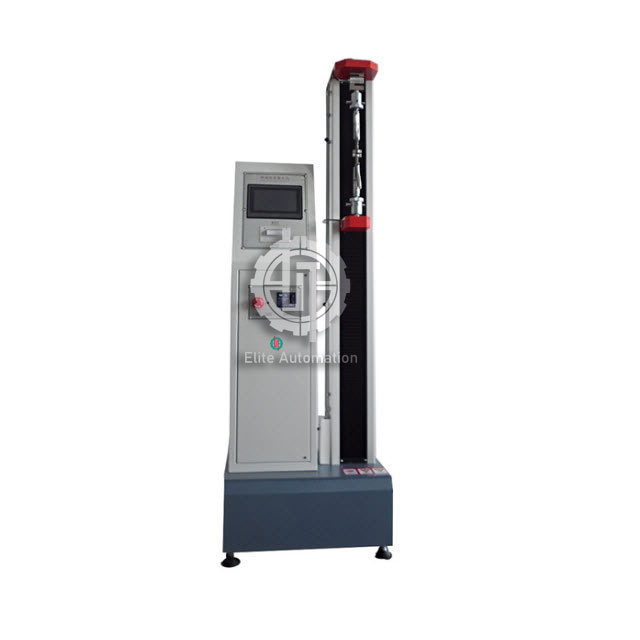

Automatic Overload Protection Floor Type Single Column Tensile
Testing Machine
This system has a basic structure and is simple to run, and it can
be mounted directly on the ground for testing, making it ideal for
product quality control in the manufacturing line.
Wires and cables, rubber, plastics, textiles, waterproof materials,
non-woven fabrics, and other non-metallic materials, as well as
metal wire, metal foil, metal sheet, and metal bar, are all tested
using the microcomputer tensile strength tester system.
Various finished goods may be measured for consistency by
stretching, compressing, peeling, shearing, tearing, and other
methods using special fixtures.
The computer will store the results of ten test reference points,
calculate their average value, and calculate the maximum value and
force value at the time of fracture automatically.
A thermal printer is included in the unit, which prints test
results automatically (optional).
Changing units: kN/N/kgf/gf/t/lbf; mm/cm/in; mm/cm/in; mm/cm/in;
mm/cm/in; mm/cm/in; mm/cm/in
Overload safety and automatic homing functions
Several test methods, such as fixed load and positioning change,
are available.
For more information, please contact our sales people. We will be
very happy to access your needs and give you back a best solution
for your case. Our company also be very good at doing modifications
for all of our machines to suit your particularly needs.
Make-to-Your-Need is one of our key services. You will find that we
are not only a machinery maker but also a total solution provider
to your practically cases. We are looking forward to have
investigation and discussion with you.
| Capacity (optional) | 10, 20, 50, 100, 200kg, 300kg, 500kg |
| Test accuracy | ±1％ |
| Displacement resolution | 0.001mm |
| Speed accuracy | ±1% |
| Test speed range | 50-500mm/min stepless speed regulation |
| Unit switch | Kg, lb, N |
| Data sampling frequency | 200 times/sec |
| Effective test width | 150mm |
| Effective stretching space | 800mm |
| Breakpoint ratio setting | 0～99％, users can set the appropriate breakdown time according to
different materials |
| Test bench safety device | up and down stroke limiting device |
| Overload protection | Over 10% of maximum load, automatic machine protection |
| Displacement measurement accuracy | ±1％ |
| Fixture configuration | One set of stretching fixture |
| Dimension | 550×400×1820mm |
| Weight | About 120kg |
| Power | 220V/50Hz |
