    Cable Jacket processing for a Single mode or a Partial mode Stripping Machine

    Ask Lasest Price
    Model Number : EL-JPSM
    Delivery Time : 2-3 weeks
    Payment Terms : T/T
    • Product Details
    • Company Profile

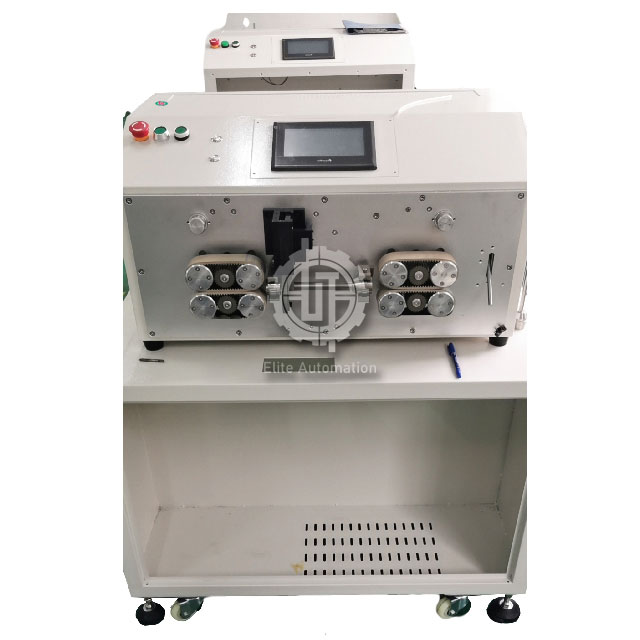

    Cable Jacket processing for a Single mode or a Partial mode Stripping Machine

    Cable Jacket processing for a Single mode or a Partial mode Stripping Machine


    This machine can partially strip the two ends’ jacket of a cable. This kind of operation is widely used in automotive industry, electric sensor industry, electrical control industry, battery industry.

    The machine support multiple mode function for varies of wire such as long wire, short wire, sheathed wire. It can be applied to single or multi-segment stripping. The touch screen introduce a very good a human-machine interface. The PLC control system makes the cutting and stripping dimension more precisely.

    For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.


    Stripping range4-35 mm2/4-50 mm24-35 mm/4-50 mm
    Cutting length0.1-100,000mm
    Length accuracy≤0.2%mm
    Stripping length1-200mm at the head of the wire, 1-100mm at the tail of the wire
    Drive mode8-wheel independent drive
    Maximum peeling diameter16mm
    Catheter diameterΦ6-18mm
    Air pressure0.2-0.6mpa
    Output1000-15000 pcs/h (depending on the length and size of the wire)
    Power supply220V 50HZ
    Motor power0.75KW
    Storage program0-99 sets of cable processing data
    Blade materialimported high-speed steel
    Weight115kg
    Dimensions800 x 650 x 450mm
