    Fully Automatic Cable Cutting and Stripping Machine for 1 to 16mm2 Cable

    Ask Lasest Price
    Brand Name : Elite
    Model Number : EL-CSM0116
    Price : Contact our Sales
    Payment Terms : T/T
    Delivery Time : 2-3 weeks
    • Product Details
    • Company Profile

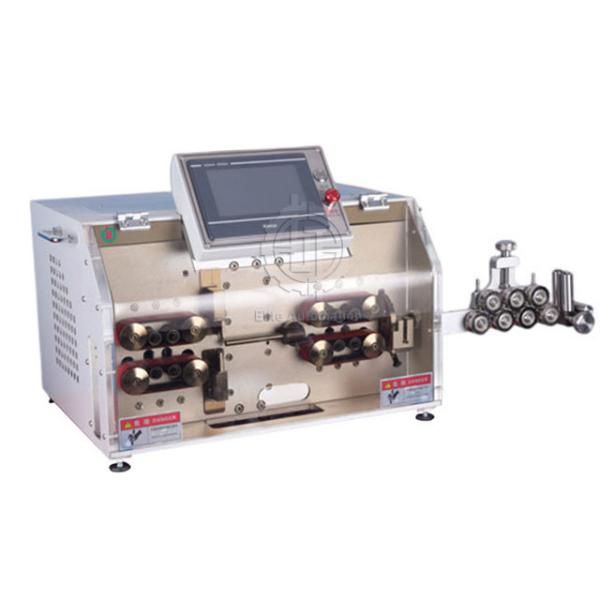

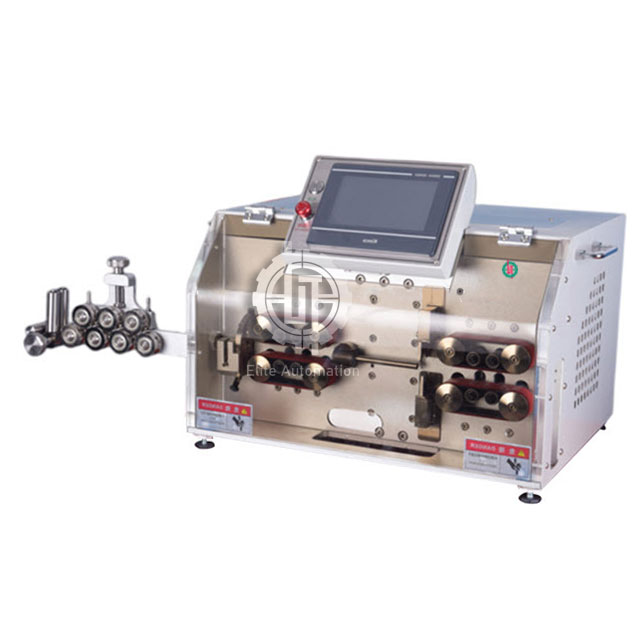

    Fully Automatic Cable Cutting and Stripping Machine for 1 to 16mm2 Cable

    Fully Automatic Cable Cutting and Stripping Machine for 1 to 16mm2 Cable


    This machine can automatically cut and strip cables from 1 to 16 mm2. It strip outer sheath of single conductor cables. One-time cutting and stripping, saving labor and time and increasing productivity. With belt feeding, wires no have less embossing or scratches.

    The display is using LCD touch screen dialog mode, beautiful appearance, simple operation, easy maintenance, stable performance, fast speed, and high precision LCD touch screen dialog mode, beautiful appearance, simple operation, easy maintenance, stable performance, fast speed, and high precision.

    This machine is widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toys industry.


    Wire feeding methodbelt feeding, no embossing and no scratches on the cable
    Display7-inch true color touch screen
    Stripping range1-16 mm2
    Cutting length1mm-99999.99mm
    Cutting tolerancewithin 0.002*L (L=cutting length)
    Maximum diameter10mm
    Tool materialhigh-quality imported high-speed steel
    Productivity3600 pcs/hour (depending on the length and size of the wire)
    Drive mode16-wheel drive (silent hybrid stepping motor, servo tool post)
