Background technology of semi-automatic winding and binding
machine:
The wire industry is highly labor-intensive and labor-intensive; AC
and DC wires generally need to be wound by hand and tied with ties,
which is extremely inefficient and takes up a large amount of human
resources.
The purpose of the utility model is to provide a simple and
efficient semi-automatic wire winding and binding machine, which
can automatically wind wires into bundles and automatically twist
the binding band. The utility model is composed of a frame
component, a winding component, a clamping component, a feeding
component, a wire shifting component, a twisting component and a
man-machine interface panel. In the frame component, there are some
electrical components and control lines for electrical control. On
the frame component, there are winding components, a clamping
component, a feeding component, a wire shifting component, a
twisting component and a man-machine interface panel The winding
column and clamping groove are installed on the turntable; the
clamping assembly is provided with a clamping tension roller fixed
on the clamping slider and installed on the clamping sliding table;
the feeding assembly is provided with a belt feeding wheel and a
belt cutting knife, which are installed on the feeding sliding
table; the belt clamping air claw is arranged in front of the
feeding sliding table, and the belt roller is arranged behind the
feeding sliding table; the wire shifting assembly is provided with
a winding assembly and a feeding group There are two pairs of
mechanical air claws fixed on the z-axis sliding table and
installed on the combined sliding table of x-axis and y-axis; the
twisted wire assembly is equipped with twisted wire air claws with
rotation axis, fixed on the z-axis sliding table and installed on
the translation sliding table. The frame assembly of the equipment
is equipped with winding assembly, clamping assembly, feeding
assembly, shifting assembly, twisting assembly and man-machine
interface panel, which is simple in structure, convenient in use,
alternate winding operation and high efficiency; in control aspect,
PLC programmable logic controller is adopted for control, which has
simple operation interface, general programming and simple
maintenance. It only needs to be set according to different
programs, namely It can wind and tie different wires.
Function characteristics of semi-automatic winding and binding
machine
This machine is suitable for AC power cable, DC power cable, USB
data cable, video cable, HDM high-definition cable and other
transmission lines. It can be twisted into bundles with coated iron
core. It can also be used in other industries, such as clothes
hanger, etc.
Employees only need to fix the end of the thread, use the foot
switch to wind the thread, and then take it out and put it to the
binding mouth to tie the tape automatically. The whole process only
takes 4-5 seconds. The machine can set the length of the wire and
the number of coils, and count the output. This machine adopts PLC
program control, text display for parameter setting, easy to
operate. It can reduce the fatigue strength of employees, improve
work efficiency, and save tie.
Technical parameters of semi-automatic winding and binding machine

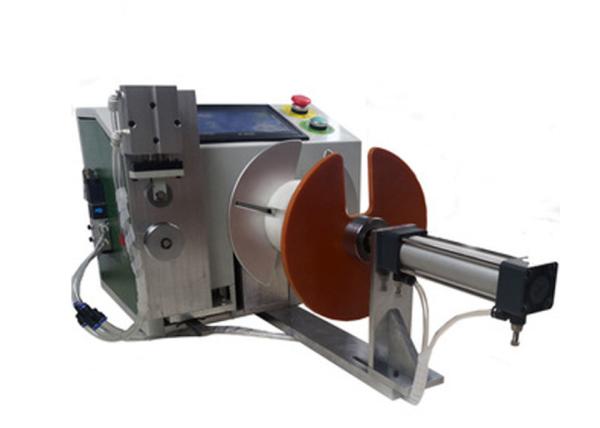

Model: kar-120p semi-automatic winding and binding machine
Length of tie: 80-140mm
Strap diameter: 10-30mm
Strapping speed: 1 second
Winding spacing: 50-200 mm
Winding speed: 1-10 adjustable
Power supply: ac220v50 / 60Hz
Machine size: 700 × 550 × 400mm
Weight: 45kg
