    Single Tie Cable Tying Machine , 6m Rubber Core Automatic Coil Winding Machine

    Ask Lasest Price
    Model Number : EL-WWTM
    Delivery Time : 2-3 weeks
    Payment Terms : T/T
    • Product Details
    • Company Profile

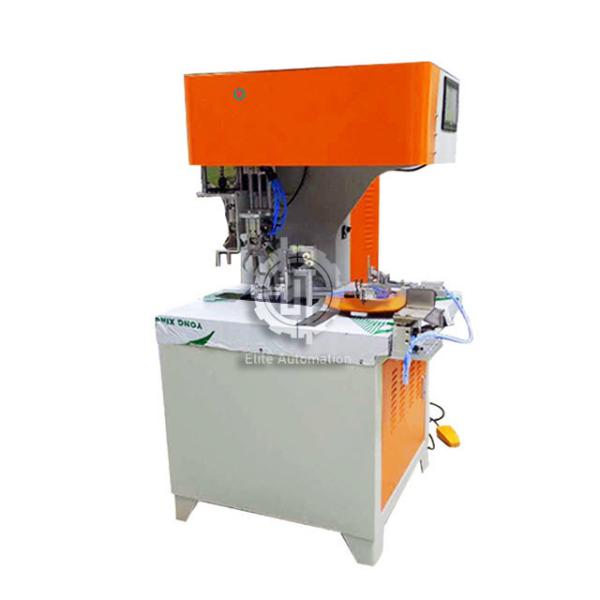

    Single Tie Cable Tying Machine , 6m Rubber Core Automatic Coil Winding Machine

    Fully Automatic 8 Shape Wire Winding and Tying Machine for USB Cables Power Cords and so on


    The fully automatic 8-shape wire winding and binding system is designed to handle a variety of cables and wires. Up to 1800 pieces per hour can be produced.

    Suitable for processing a variety of cables and wires of various sizes, such as USB cables, power cords, and other similar products.


    8-shaped tying, leaving head and tail, or holding head and tail together, high efficiency, up to 1800 parts per hour

    Simple to use, manage, and troubleshoot

    It's small and compact, so it doesn't take up much space.


    For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.


    Suitable materialAC wires, DC wires, etc.
    Finished type8-shaped single tie
    Suitable cable tieRubber core, no core
    Applicable length≤ 6m
    Applicable diameter≤Φ6.2MM
    Winding distance65-240MM
    Ligation diameter≤ 45MM
    Main motorservo and step motor
    Voltage210-240V 5A
    Theoretical yield1800pcs/h
    Gas consumptionAir consumption of ordinary peeling machine
    Power consumptionAir consumption of ordinary peeling machine
    Head length0-100MM
    Tail length>0MM
    Air pressure0.4-0.55 Mpa
    Number of turns speedAdjustable
    Size (mm)800*600*1400 mm
