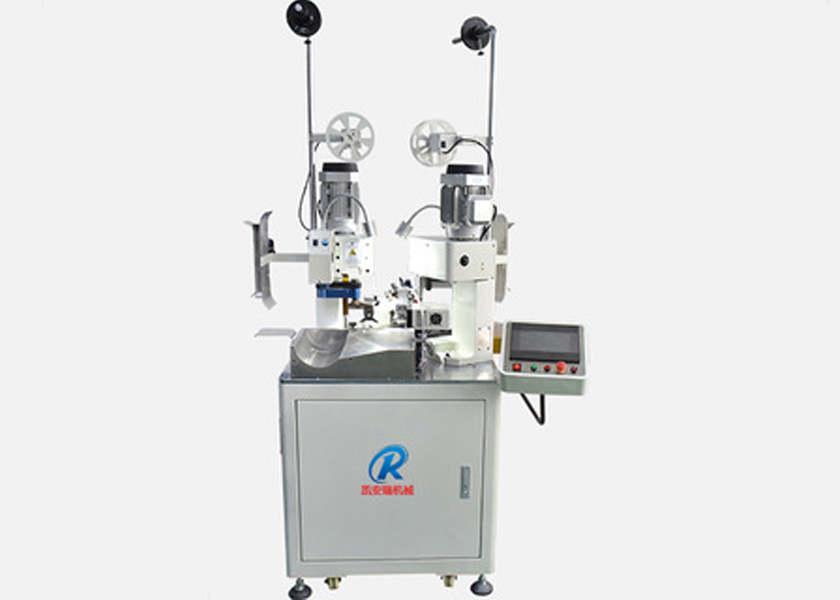

The manufacturer supplies automatic double head cable terminal
machine, strip terminal machine, mute terminal machine
Parameters of Double end terminal machine
| model | KAR-06S |
| Power Supply | AC220V / 50Hz / 60Hz single phase |
| capacity | 4000-6000 pieces / hour (depending on the material) |
| Wire range | AWG#16-AWG#32 |
| Cutting line length | 32mm-9999mm |
| Cutting accuracy | 0.2±0.02 |
| Stripping Length | 0.1-9mm |
| Pressing capacity | 2 tons |
| Detection device | Detect whether there is wireless material, pressure, conduit and
air pressure |
| Appearance dimension | L980*W700*H1310mm(Without protrusions) |
| weight | About 400kg |
| Tool material | Imported tungsten steel / high speed steel |
| Display mode | LCD (Chinese and English translation) |
| Applicable mould | OTP transverse mold, OTP direct mold, can be equipped with
vibration plate |
Description of characteristics
The automatic line terminal pressing machine is a fully automatic
multifunctional machine which integrates feeding, cutting,
stripping and pressing end. Traditional line pressing terminal is
manual operation, not only low efficiency, but also unstable
product quality. Moreover, operators should continuously and highly
concentrate on eye power to repeat the same action, and the eyes
are easy to fatigue. The company has been operating in the online
material terminal industry for many years, and has accumulated rich
technology and experience. After more than 2 years, it has a wide
potential: mainly used for pressing: pH, XH, eh, Zh and other color
row communication harness terminals, Sn, SM, V DuPont and other
connector line terminals
Cost saving: front end delivery, back end finished products, all
processes are completed automatically, saving customers a lot of
production costs
Good stability: the eccentric shaft and cam structure are used for
end striking, and the terminal pressure force is balanced, so that
the wire harness terminals are pressed neatly, with good
consistency and very stable product quality. The machine is stable
in operation and high in finished product rate. High precision:
step motor is used to control cut-off, the stripping length of the
split line is 0.1mm.
Precise position: servo motor driver is used to control the line
travel, and the terminal is controlled accurately, which ensures
the continuity performance of the wire harness and the line.
Various ways of striking end: use steering mechanism. Switch the
direction of terminal pressing at both ends of the line
Automatic: automatic production, labor cost saving: cut off and
peel off the line from the fixed length of the incoming and
outgoing lines. The process of pressing double (single) head
terminals is completed automatically without human participation.
Less land occupation: each equipment covers less than 2.5 square
meters, saving the rent of the plant.
High efficiency: press 18000pcs / h (max), and the machine can work
24 hours.
Simple adjustment: ordinary employees only need simple training,
can operate several machines one person.
Operation simplification: touch screen operation, parameter setting
and operation
The whole process of foolishness, as soon as you see it.
