Full automatic winding and binding machine for packaging and
binding
This machine is mainly used for winding and binding wires together.
This machine is suitable for ACD power line, DC power line, USB
data line, video line, HDM HD line and other wires.

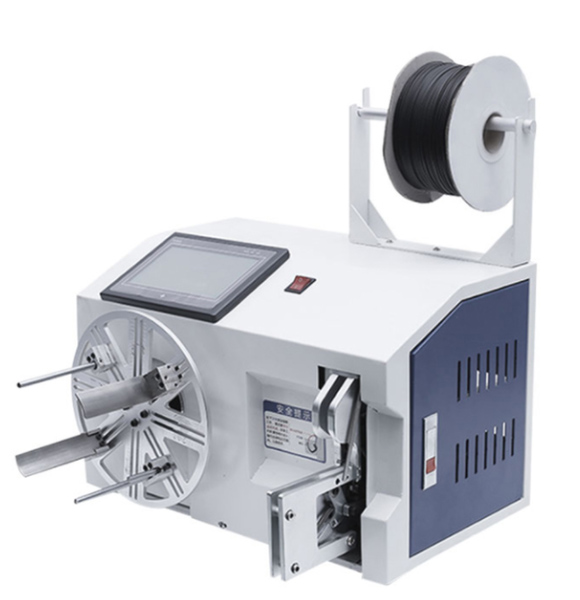

Automatic winding binding machine
| Product name | Automatic binding winding machine small binding mouth | Binding Gap in Automatic Binding Winder |
| Number of ties | 65mm-125mm | 120mm-190mm |
| From the binding diameter | φ3-φ28mm | φ15-φ40mm |
| 15 kinks count | 2-8 turns (adjustable) |
| Winding speed | 2-10 cycles/sec (adjustable) |
| Binding speed | once per second |
| Voltage | AC220V 50HZ/60HZ |
| strength | <200W |
| physical dimension | 450*390*580mm |
| weight | 40KG |
1. Advantages: Compared with manual winding, this machine has fast automatic
winding speed, good length consistency, good winding shape, high
efficiency, saving time and effort.
2. Usage: put the wire on the winding port, and then press the foot pedal to
automatically wind the hollow circular 8-shaped wire
3. Parameter setting: The intelligent touch screen controscreen is intuitive and
convenientfor viewing and operation.all parameters adopt touch
screen numerical control, which can be easily operated without
professional technicians, and can be switched between Chinese and
English at will.
4. Winding reel: anti embroidery material is adopted, and the winding diameter can
be adjusted according to needs, with high precision.
5. Binding mouth: imported steel, high durability, automatic binding.
6. The company is a factory specializing in the production of wire rod
processing equipment in Chinese mainland. It has 11 years of
production experience and customer service. It mainly produces end
beating machine, peeling machine, soldering machine, winding
machine, wire cutting machine , etc.
