    6 To 30mm2 Wire Processing Machine

    Ask Lasest Price
    Model Number : EL-MSCCS
    Delivery Time : 2-3 weeks
    Payment Terms : T/T
    • Product Details
    • Company Profile

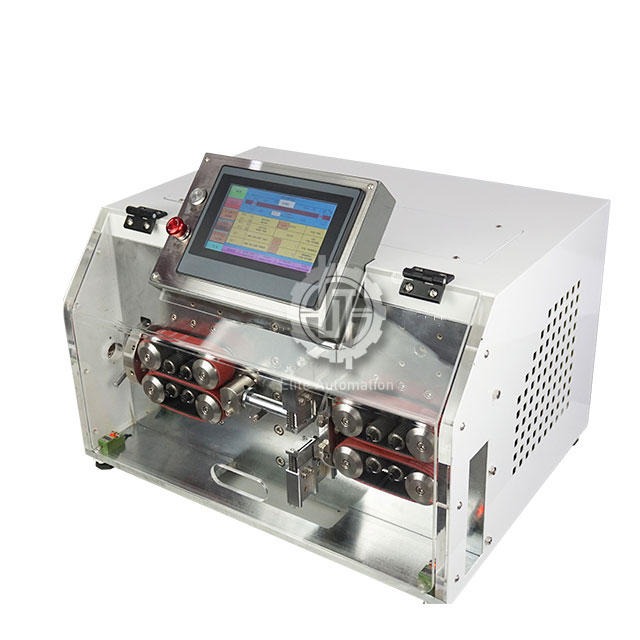

    6 To 30mm2 Wire Processing Machine

    Multi-core Sheathed Cable Cut and Strip Unit 6 to 30 mm2


    Multi-core jacket cables can be processed with this wire stripping and cutting unit. It has the ability to remove both the outer and inner core skin at the same time. The wire sizes that can be used vary from 6 to 30 sq mm.


    • Strip the outer and inner core skins of multi-conductor cables at the same time.
    • Head stripping: the sheathed wire falls off completely 10-120mm, and the core wire falls off completely 1-120mm.
    • Tail stripping: the sheathed wire falls off completely 10-240mm, and the core wire falls off completely 1-240mm.
    • Wires on a belt, no embossing, and scratches Wires on a belt, no embossing, and scratches Wires on a belt, no embossing, and scratches
    • 16-wheel drive is the driving mode (silent hybrid stepper motor, servo tool holder) 16-wheel drive is the driving mode (silent hybrid stepper motor, servo tool holder)
    • Wire sizes that can be used: 6-30 square mm Wire sizes that can be used: 6-30 square mm

    For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.


    Stripping range6-30mm2
    Cutting length1mm-99999.9mm
    Cutting tolerancewithin 0.002*L (L=cutting length)
    Head peelingMAX 120mm
    Tail peelingMAX 240mm
    Max catheter diameterΦ16
    Wire typeSheathed cables, PVC cables, etc.
    Tool materialHigh quality imported high speed steel
    Capacity2300pcs/h
    Display7 inch true color touch screen
