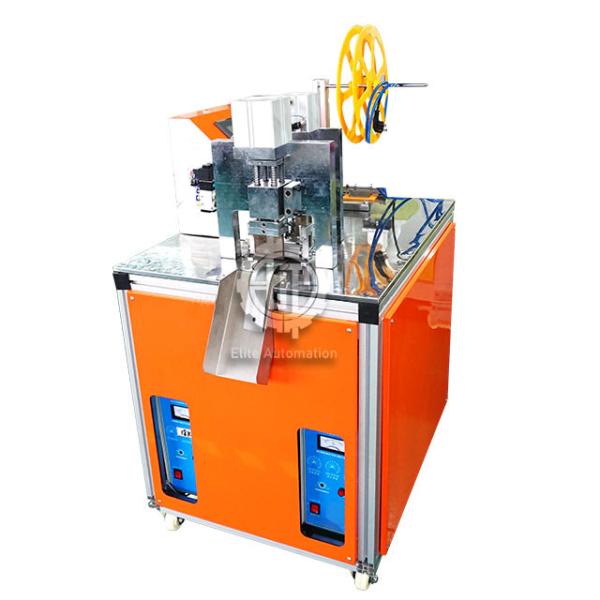

Ultrasonic Woven Tape Cutting and Punching Machine for Sticker
Trademarks Printed Labels PVC Trademarks etc
This high-speed ultrasonic woven tape cutting machine can cut and
punch all types of washing water marks, sticker trademarks, woven
labels, printed labels, ribbon, non-woven fabrics, and PVC
trademarks, among other things. The pace can exceed 150 times per
minute, and the precision can reach 0. 3mm at a cutting length of
2.5m, thanks to the high-speed and precise feeding motor.
With ultrasonic cutting, the cut is smooth and flat, with no
scattered material.
Its purpose is to discharge waste, eliminate waste's influence, and
keep the system running continuously.
Completely monitor the speed of the unit with adjustable cutter and
feed speeds.
At a cutting length of 3mm, the precision of the high-speed and
precise feeding motor will exceed 0. 3 mm.
Debug mode, positioning mode, fixed length mode, and discharge mode
are the four operational modes of the control system. These modes
of operation can handle a wide range of material cutting
requirements.
For more information, please contact our sales people. We will be
very happy to access your needs and give you back a best solution
for your case. Our company also be very good at doing modifications
for all of our machines to suit your particularly needs.
Make-to-Your-Need is one of our key services. You will find that we
are not only a machinery maker but also a total solution provider
to your practically cases. We are looking forward to have
investigation and discussion with you.
| Suitable materials | washing water mark, sticker trademark, woven label, printed label,
ribbon, non-woven fabrics, PVC trademark, etc. |
| Cutting length | 1mm-1000mm |
| Cutting width | 0-100mm |
| Feeding speed | 150 times / min |
| Tool material | high speed steel D2 |
| Roller material | stainless steel |
| Automatic feeding | Yes |
| Discharge function | Yes |
| Power | 220V / 50HZ |
| Weight | 103kg |
| Dimensions | 800L x460w x1200H mm |
