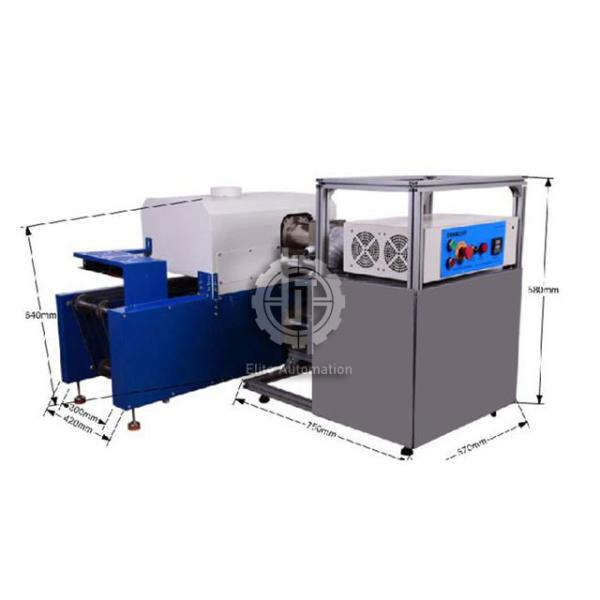

Heat Shrinkable Tube Heater Machine for FEP PTFE Materials
This machine is a heat shrinkable tube heating machine with a
conveyor belt that is designed for mass production. The heating
system and the conveyer work together to ensure that the heat
shrinkable tube is precisely heated without damaging the wire. The
conveyor belt's speed is kept consistent by manually changing the
speed. The heat shrinkable tube of various sizes can be heated, and
the vertical and parallel distances between the heating port and
the conveyor belt can be modified. It's ideal for heating FEP heat
shrinkable tubes at high temperatures, as well as broad diameter
and long heat shrinkable tubes.
It is possible to select one side or two side heating depending on
the heat shrinkable tube's heating requirements.
The width of the heating region, as well as the left and right
positions, can be modified by the user to fit the size of the heat
shrinkable cable, saving energy and ensuring that the wire is not
harmed.
The unit is secure and durable, with double insulation and a solid
machine shell that can operate in high temperatures for a long
time.
The outlet has a temperature sensor that can change the temperature
based on the user's needs. Temperature control accuracy is 1°C.
It has overheating overload security, power cut protection,
emergency stop turn, and phase sequence protection, which ensures
the equipment's safety, does not emit exhaust gas, and complies
with environmental regulations. It can run continuously 24 hours a
day, all year.
This system is equipped with auxiliary conveyors and can be used to
heat shrinkable tubes of any size or shape.
For more information, please contact our sales people. We will be
very happy to access your needs and give you back a best solution
for your case. Our company also be very good at doing modifications
for all of our machines to suit your particularly needs.
Make-to-Your-Need is one of our key services. You will find that we
are not only a machinery maker but also a total solution provider
to your practically cases. We are looking forward to have
investigation and discussion with you.
| Maximum transmission width | 250mm |
| Maximum transmission height | <60mm |
| Maximum wire harness diameter | 20mm |
| Maximum heating width | <90mm |
| Heating area | 400mm |
| Cooling zone | 200mm |
| Conveyor belt | Stainless steel |
| Speed | 1~3m/min |
| The power of the motor | 25W(Stepless speed regulation) |
| Heating | Hot air |
| Heating pipe power | 6000W, , 2 sets |
| Power demand | 380V three phases four wires 50HZ |
| Power | 12.3KW |
